30UF CBB60 Motor Run Capacitor, 450VAC 50/60HZ Cylindrical Capacitor for Motor R

30UF CBB60 Motor Run Capacitor, 450VAC 50/60HZ Cylindrical Capacitor for Motor Run, Washing Machines, Air Conditioners and Water Pumps

Description

Cylindrical CBB60 Motor Run Capacitor 30UF for Starting Motors with Frequency of 50Hz/60Hz

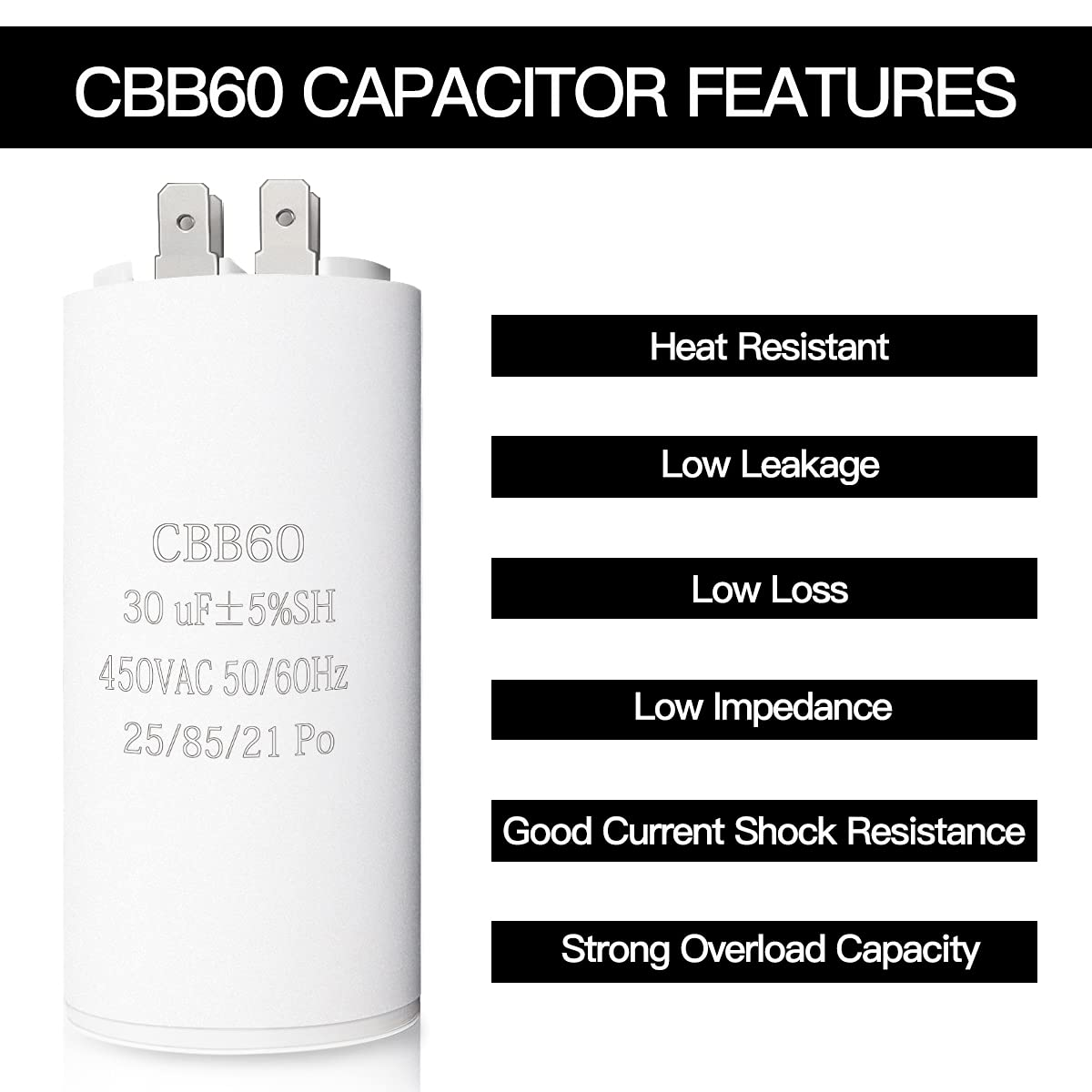

Main Features:

1. Can be charged for a long time and is not easily damaged, so that the capacitor has a longer .

2.The insulation resistance is high and the impact current is resistant.

3.Explosion-proof design, good self-healing performance, electrolytic core.

4.This capacitor does not distinguish between positive and negative poles.

5.Widely used in running motors with a frequency of 50Hz/60Hz.

6. it is suitable for refrigerators, air conditioners, AC motors, water pumps, generators, washing machines and household appliances.

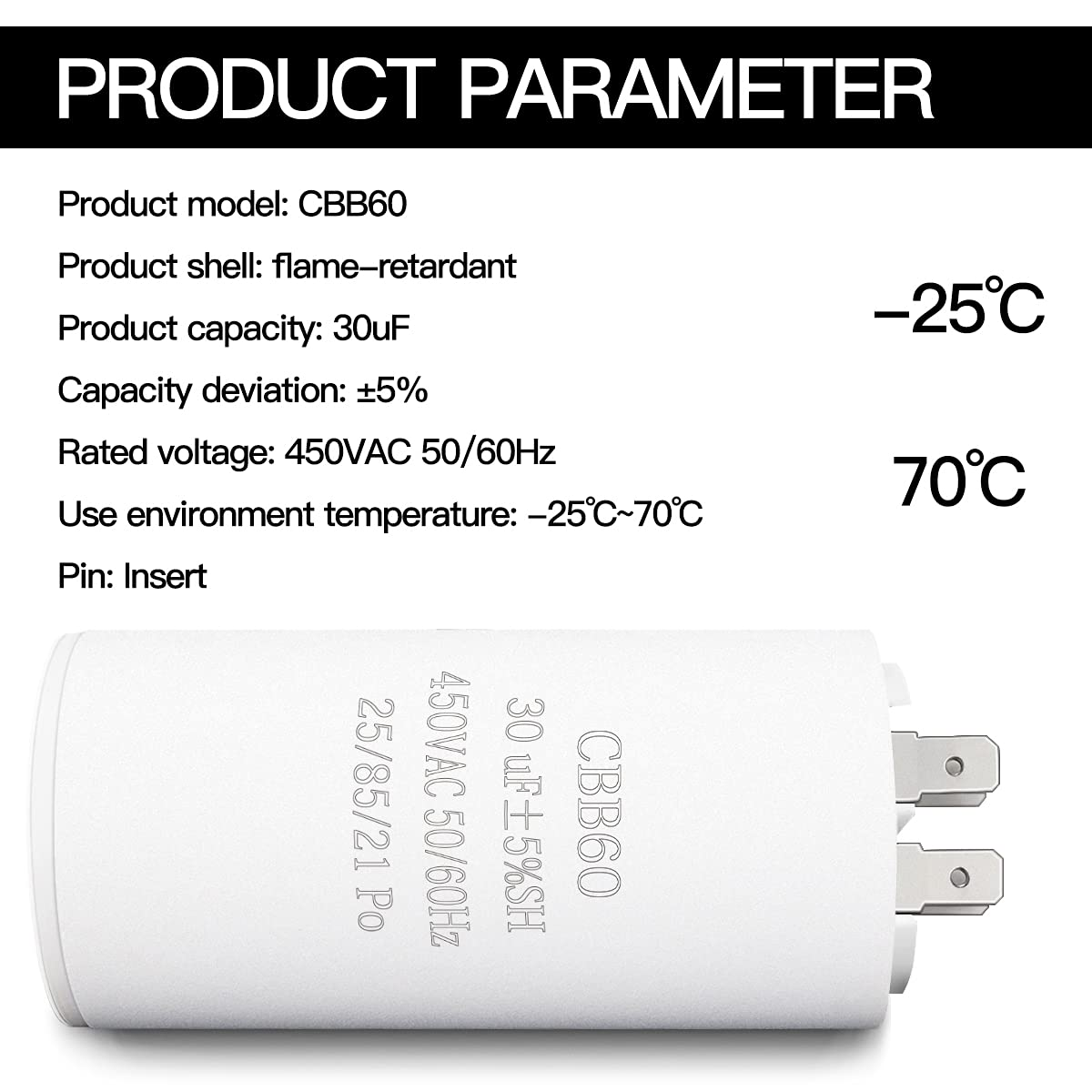

Specifications:

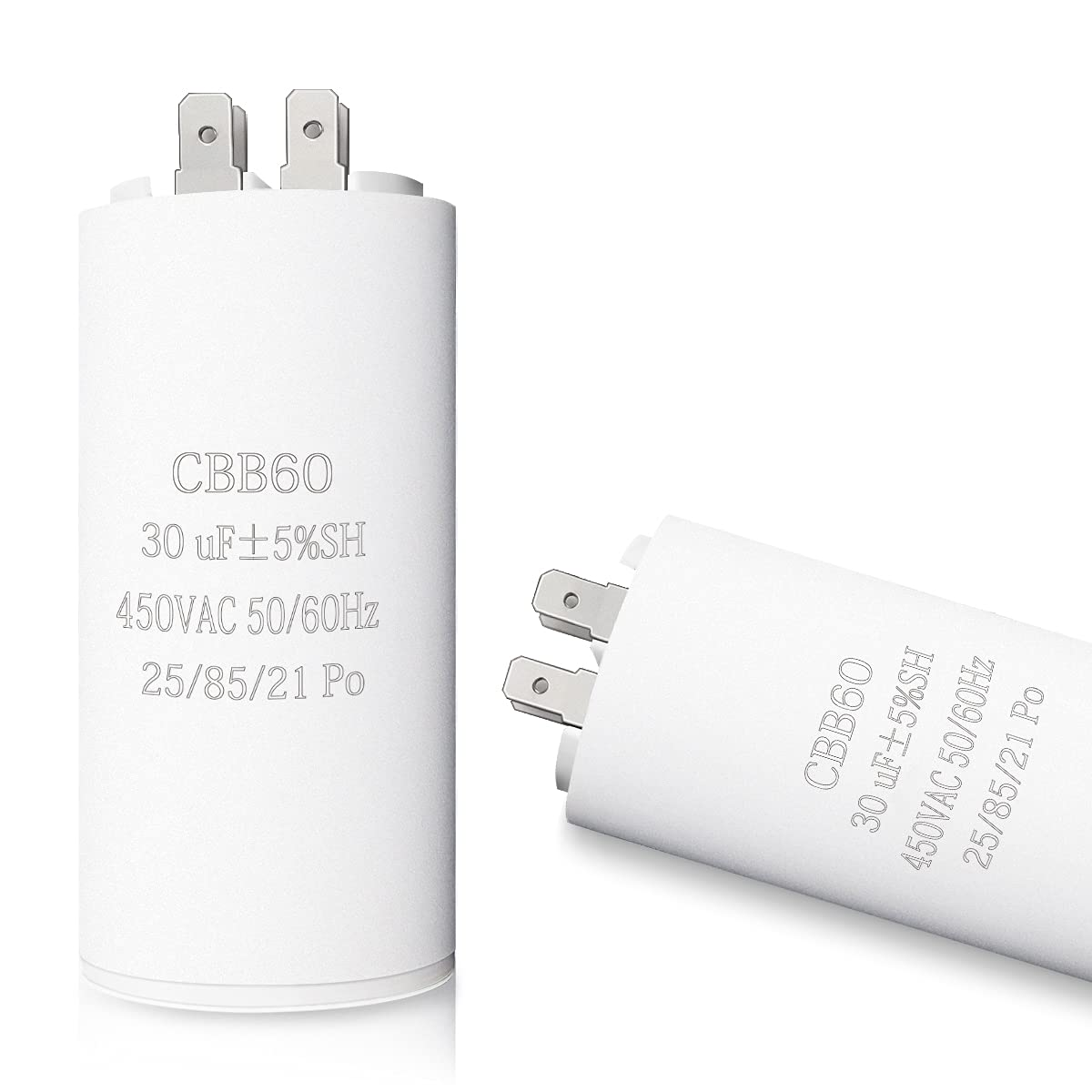

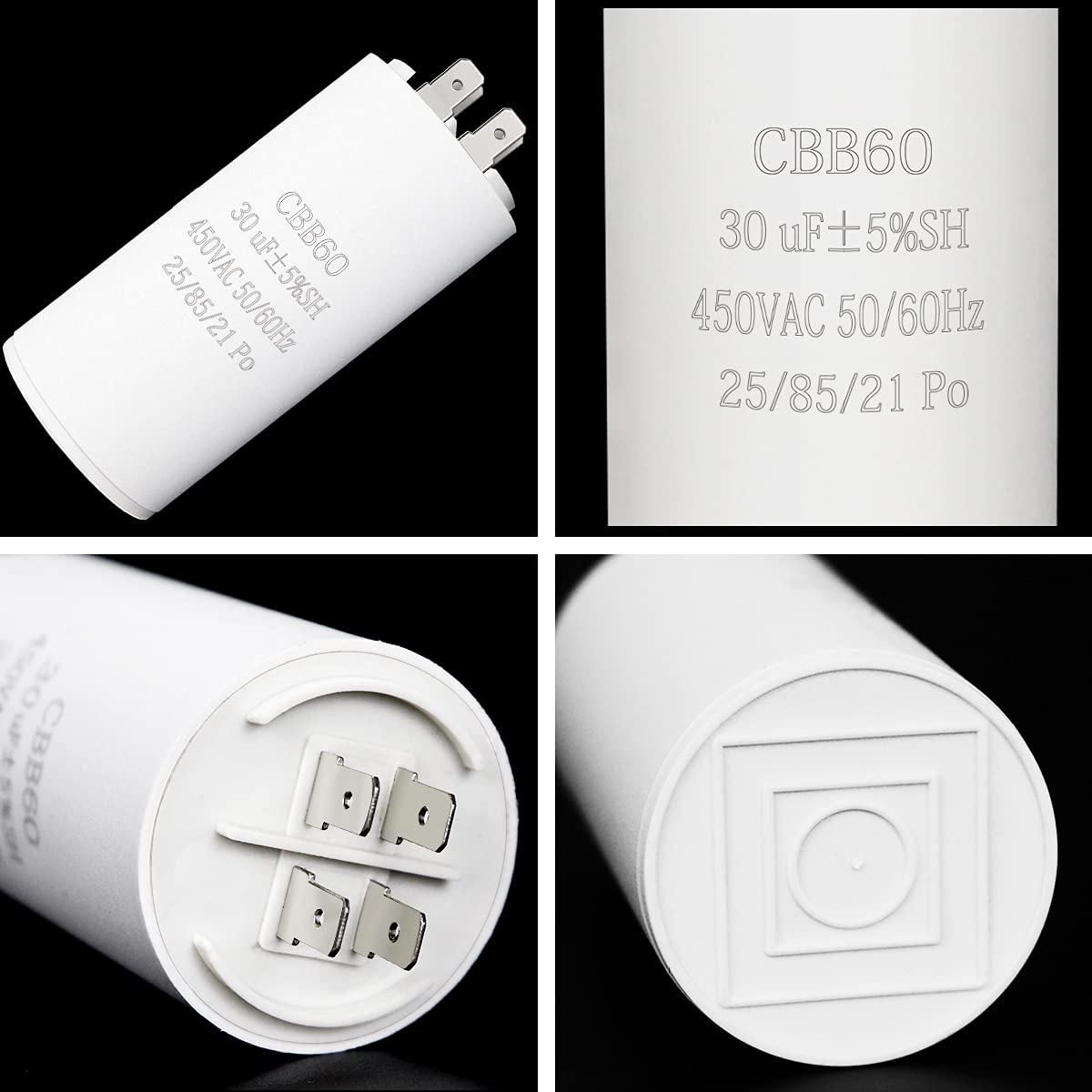

Model: CBB60

Capacity: 30uf

Tolerance: ±5%

Voltage: 450V AC

Frequency: 50Hz/60Hz.

Capacitor Size : 43mm*93mm/ 1.69" * 3.66"(D*H)

Package list:

1 * 30UF CBB60 Motor Run Capacitor

Please Distinguish: This CBB60 Capacitor is a running capacitor while CD60 Capacitor is a starting capacitor.

• CBB60 Capacitor : The CBB60 capacitor is the running capacitor. When the motor is energized, the CBB60 capacitor works and the motor starts to rotate. If the CBB60 capacitor is damaged, The load capacity of the motor will be reduced.
• High quality: CBB60 motor running capacitor is made of high-quality materials, high-quality explosion-proof design , which can be charged for a long time and is not easily damaged, so that the capacitor has a longer . The insulation resistance is high and the impact current is resistant.
• Safe & Stable : This capacitor uses edge-thickened metalized film as electrode and dielectric. The film is wound by an automatic winding machine and then loaded into the shell. Then the high purity flame retardant epoxy resin or wax is loaded into the case to keep it in vacuum and to make the product resistant to high temperature.
• Scope of Application: CBB60 running capacitor can be applied to air conditioners, water pumps, generators, washing machines, refrigerators and other household appliances. Mainly used for motors with operating frequency of 50HZ/60HZ.
• Parameters: The capacitance value is 30uf. The rated voltage is 450V AC. Frequency is 50Hz/60Hz. Capacitor Size - 43mm*93mm/ 1.69" * 3.66"(D*H)
